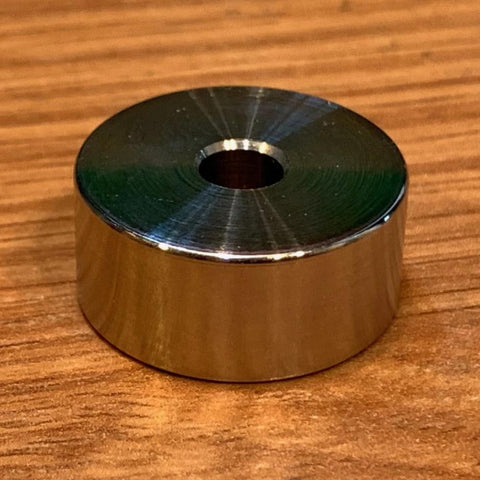

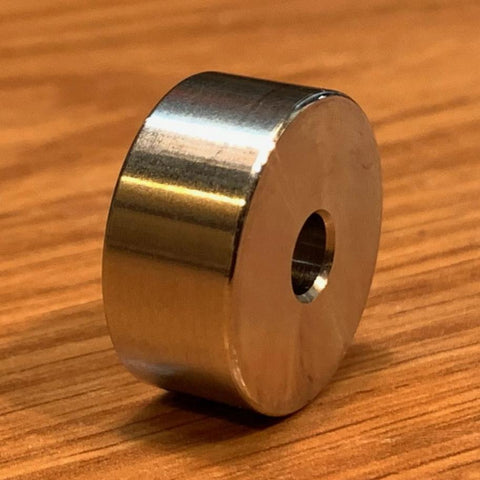

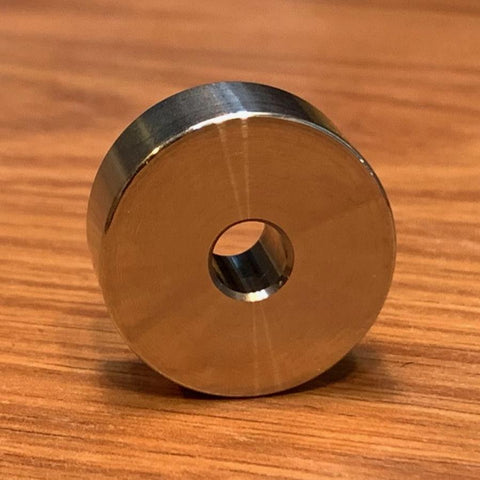

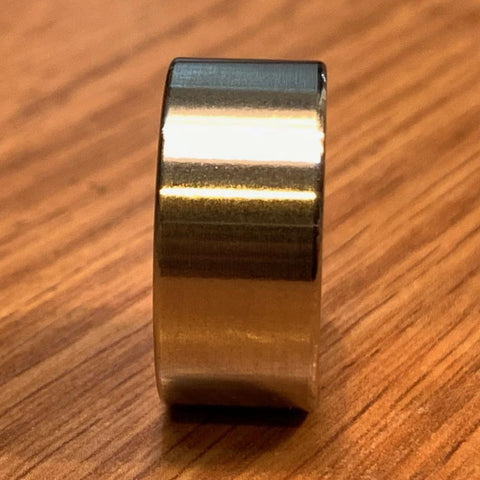

EXTSW 1/4” ID x (1" / .990") OD x 7/16” Thick 316 Stainless Spacer

EXTSW 1/4” ID x 1” OD x 7/16” Thick 316 Alloy Stainless Washer / Spacers

.030 inch Radius OD / Countersunk ID (no sharp edges)

Actual size .257" ID x .990" OD x .438" Thick
(+/-.003" all dimensions)

Made in USA on a CNC lathe

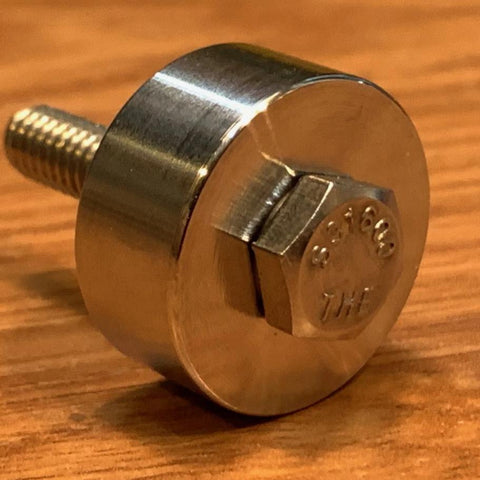

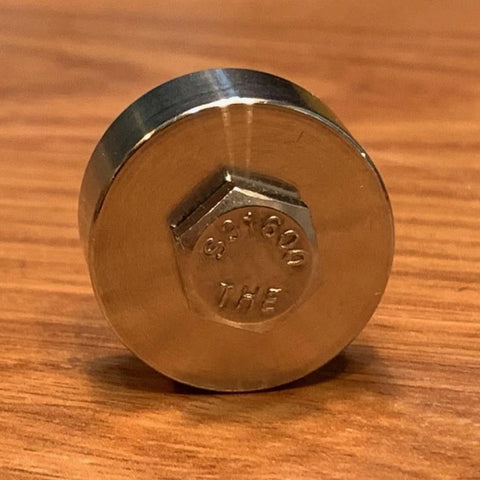

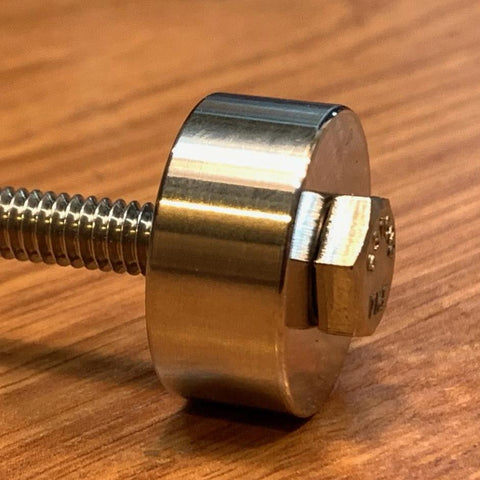

It is a beautiful fit for your 1/4” Stainless bolts

We can make as many as you need, just contact me.


316 Grade Alloy Stainless contain a higher percentage of nickel than 304 SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.

316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
