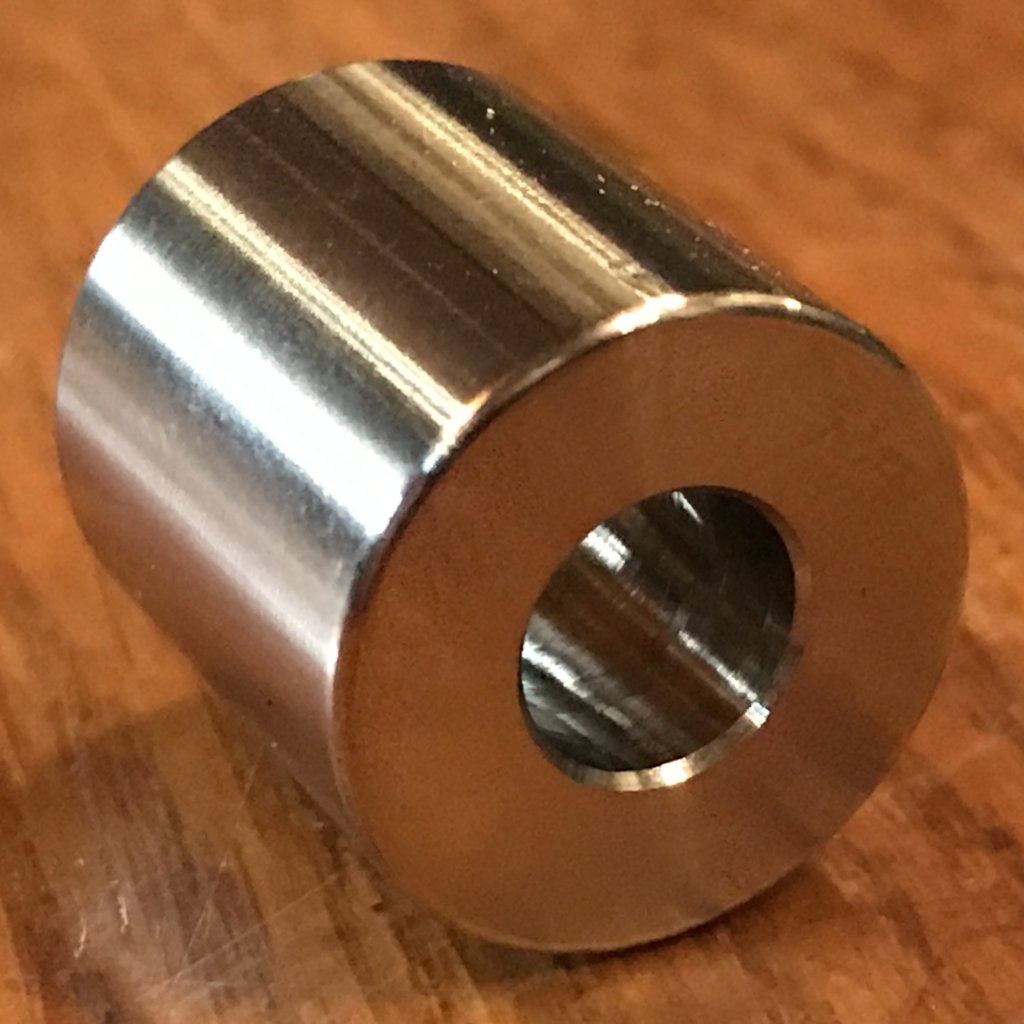

EXTSW 5/16” ID x ( 7/8” / .865") OD x 11/16" Thick 316 Stainless Spacer

EXTSW 5/16” ID x ( 7/8” / .865") OD x 11/16” Thick 316 Alloy Stainless Spacers

Actual size .323" ID x .865" OD x .688" Thick

(+/-.003" all dimensions)

Made in USA on a CNC lathe

It is a beautiful fit for your 5/16” Stainless bolts

 030 inch Radius OD / Countersunk ID (no sharp edges)

We can make as many as you need, just contact me.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.

316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
