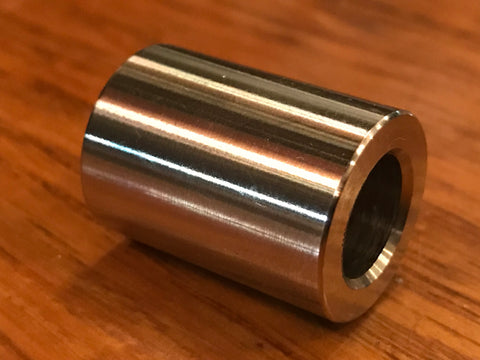

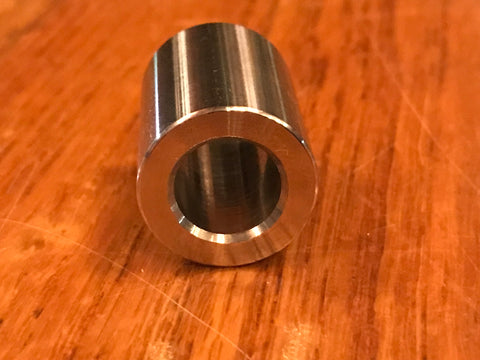

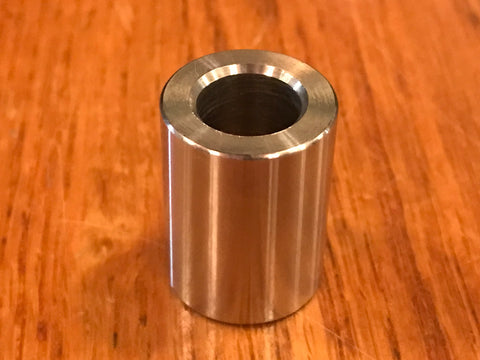

EXTSW 7/16" ID x (3/4”/.740" OD) x 1" Long 316 Stainless Spacer

EXTSW 7/16” ID x 3/4” x 1” Long 316 Alloy Stainless Spacers

Actual size .443” ID x .740” OD x 1.000” Long

(+/- .003" on all dimensions)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

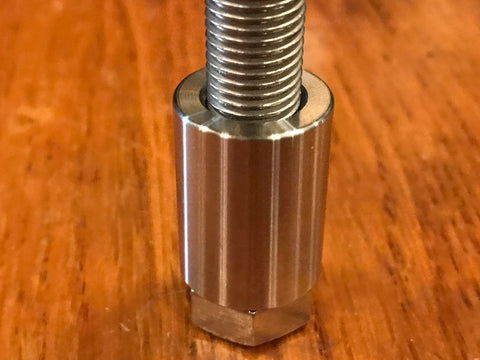

It is a beautiful fit for your 7/16" Stainless bolts

Just contact me if you need a custom size washer.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.

316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
