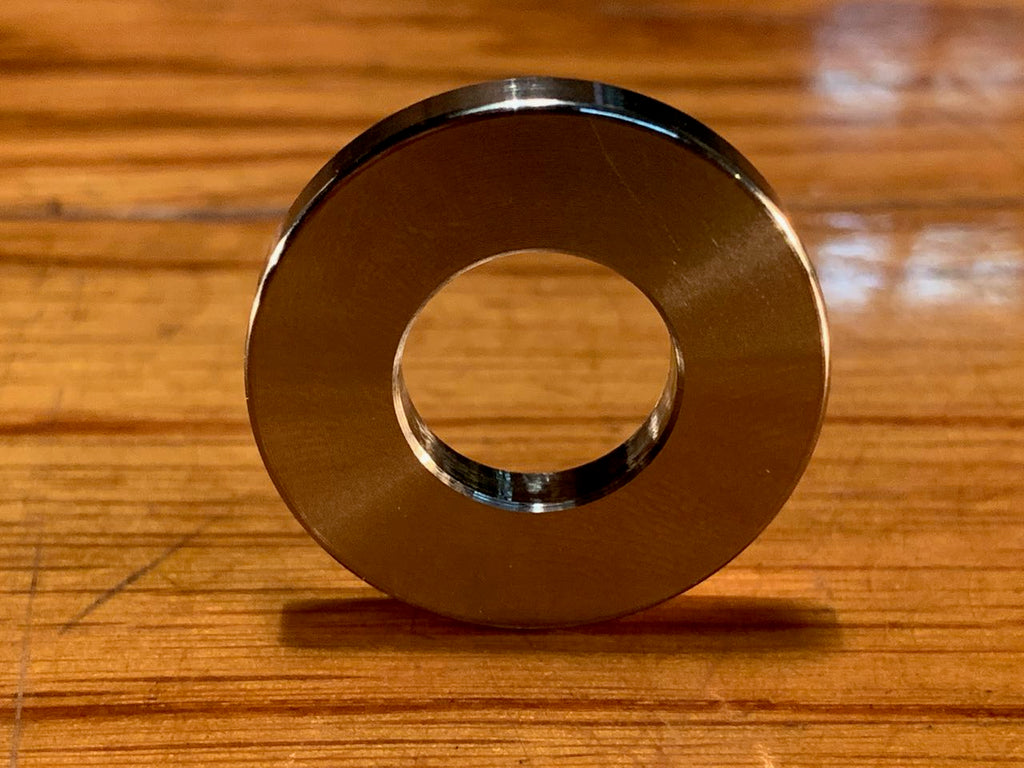

(4pc) Custom EXTSW 14.07 mm ID x 31.5 mm OD x 3.2 mm thick 316 Stainless Washer

(4pc) Custom EXTSW 14.07 mm ID x 31.5 mm OD x 3.2 mm thick 316 Stainless Washer

Actual size .554" ID x 1.240” OD x .125" thick
(+/- .003" on all dimensions)

Make sure the sizes and tolerances will work for you.

Custom prices and orders are not returnable.

.030 Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe


We can make as many as you need, just contact me.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.

316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
