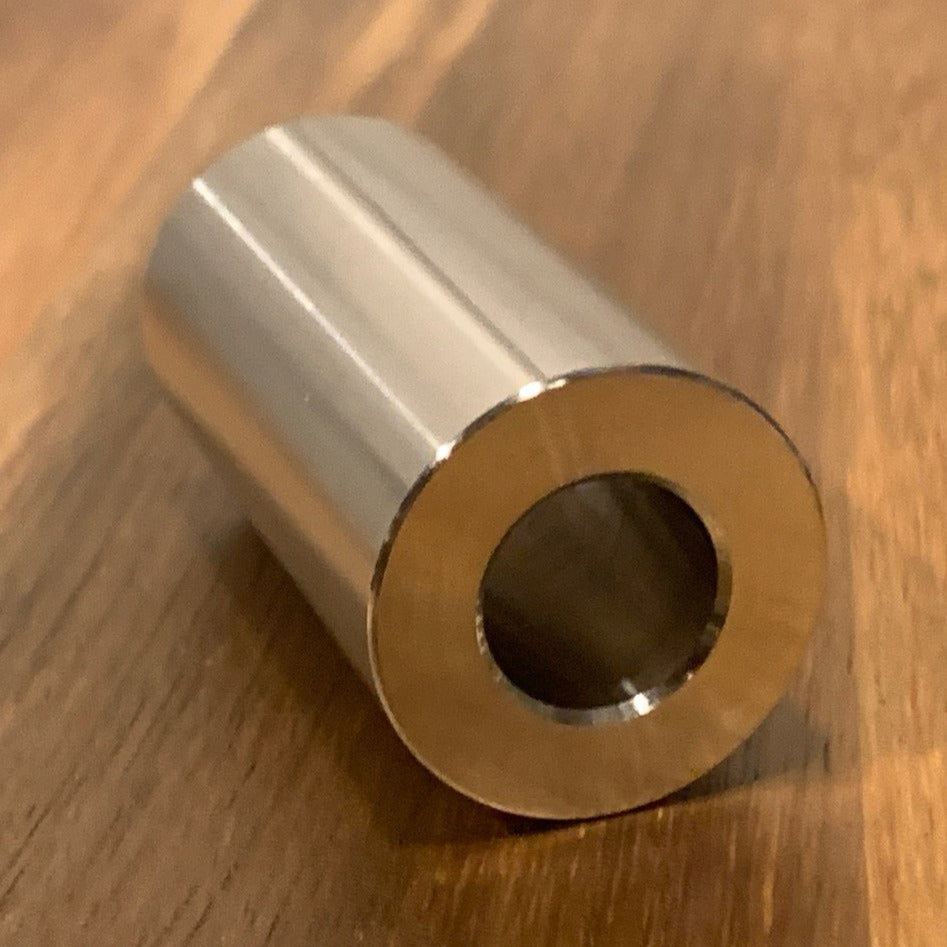

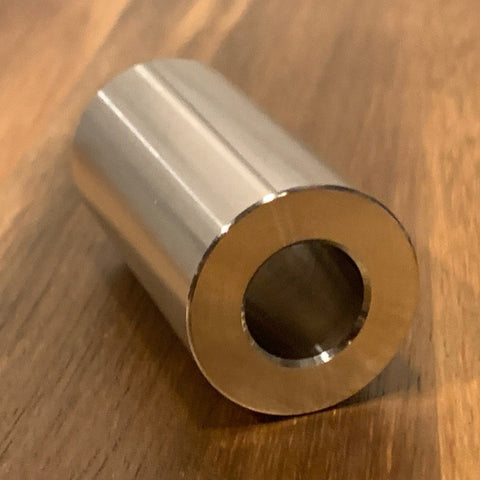

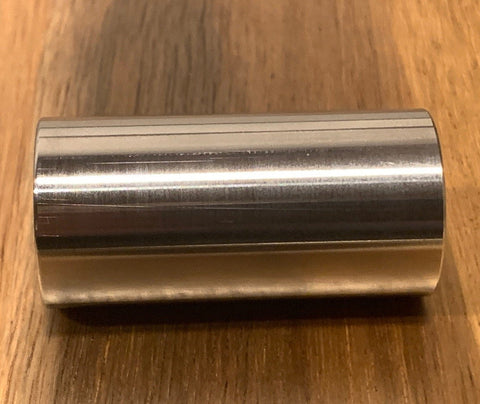

EXTSW 1/2" ID x (1" / .988" OD) x 1.968" long 316 Stainless Spacer

EXTSW 1/2” ID x 1” x 1.968" thick 316 Alloy Stainless Shaft Spacers

Actual size .507” ID x .988” OD x 1.968” Long

(+/- .003 on all dimensions)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

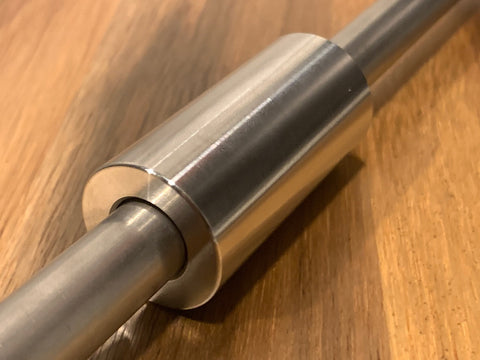

It is a beautiful fit for your 1/2" Shafts or All-thead,

We can make as many as you need, just contact me.


316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.


316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
