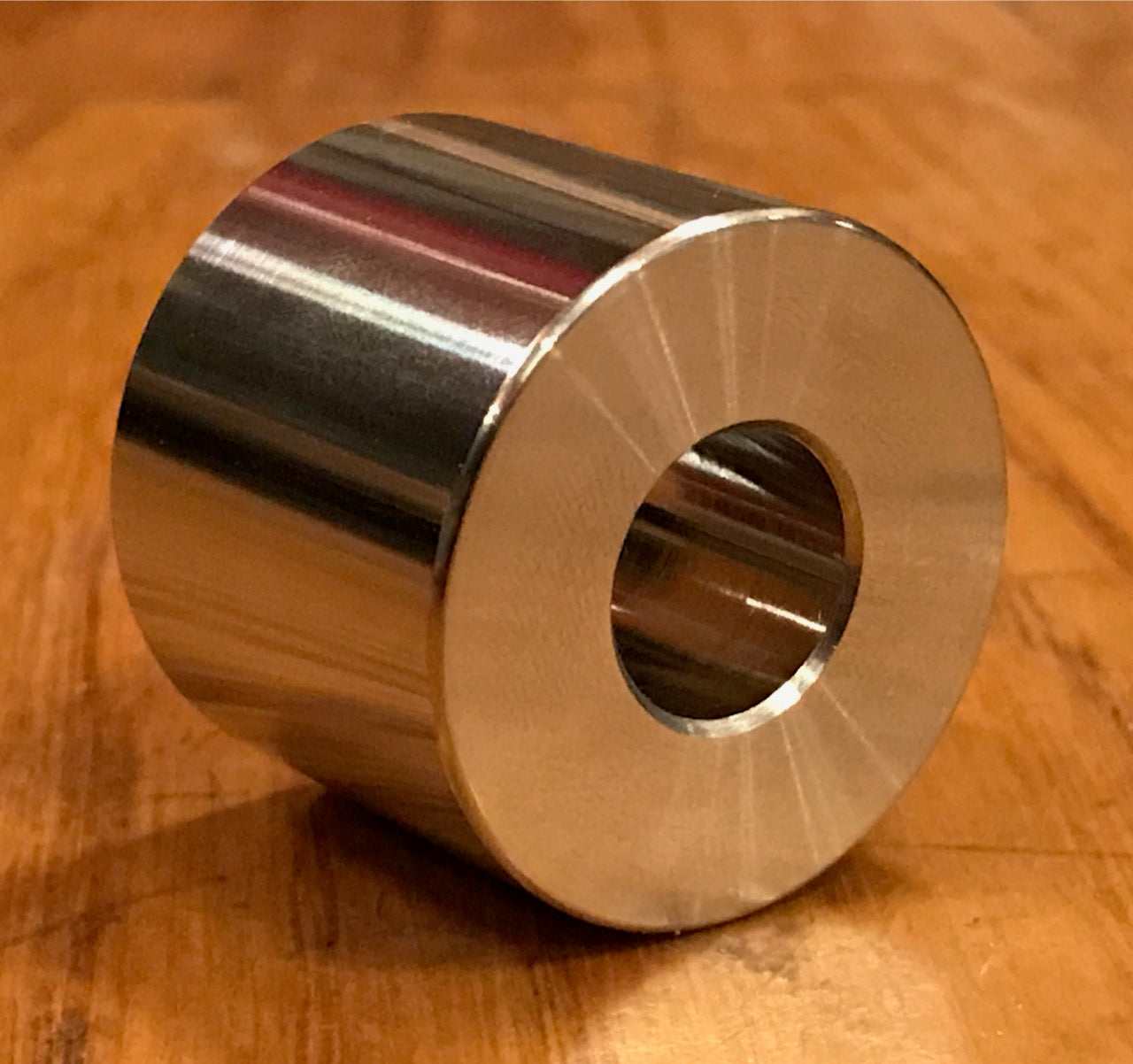

EXTSW 14.5 mm ID x 37.85 mm OD x 31.75 mm thick 316 Stainless Spacer

EXTSW 14.22 mm ID x 37.85 mm OD x 31.75 mm thick 316 stainless spacer

Actual size .560" ID x 1.490” OD x 1.250" thick
(+/- .003" on all dimensions)

.030 Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

We can make as many as you need, just contact me.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.

316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
