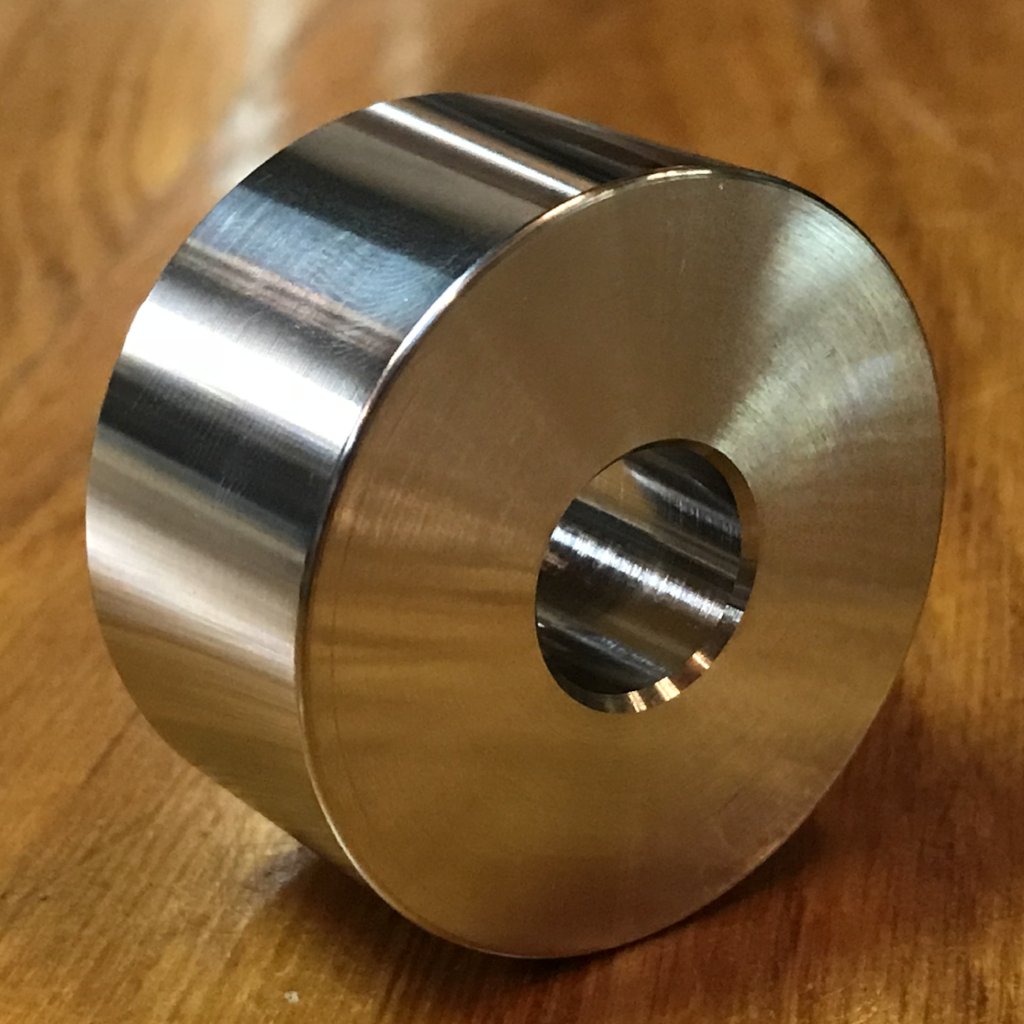

EXTSW 14.3 mm ID x 1.490" OD x 1 1/4" Thick 304 Stainless Spacer

EXTSW 14.3 mm x 1 1/2 ” OD x 1 1/4” thick 304 alloy stainless shaft spacer

Actual size 14.3 mm ID x 37.85 mm ” OD x 31.75 mm thick

(+/- .076 mm on all dimensions)

Actual size .567 ID x 1.490” OD x 1.250 thick

(+/- .003 on all dimensions)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

It is a beautiful fit for your 1” Stainless shafts, allthread, studs, fully threaded bolts

Just contact me if you need a custom size washer.

Some other websites will list their washers as "18-8" or just "stainless steel".

"18-8" is not an specific alloy

"Stainless steel" is not a specific alloy

WE TELL YOU THE ALLOY OF STAINLESS

"18-8" is not the same as 304 Alloy.

"18-8" is a general classification of the 300 series Stainless steel, which includes 302, 302HQ, 303, 304, 305, 384, XM7 .

304 Stainless Alloy is more expensive and is harder to machine than 303.

304 has better corrosion resistance than 303. 304 is weldable, 303 is not.

The term "18-8" has APPROXIMATELY (not exactly) 18% Chromium and 8% Nickel.

The term "304" alloy stainless steel has a MINIMUM amount of 18% Chromium and a MINIMUM amount of 8% Nickel, COMBINED with a MAXIMUM of 0.08% Carbon. Carbon is one of the elements that will make it corrode.

Sulfur is added to the 303 alloy which makes it easier to machine, but the sulfur addition does lower Alloy 303’s corrosion resistance to below that of Alloy 304 and also makes it not suitable for welding.
