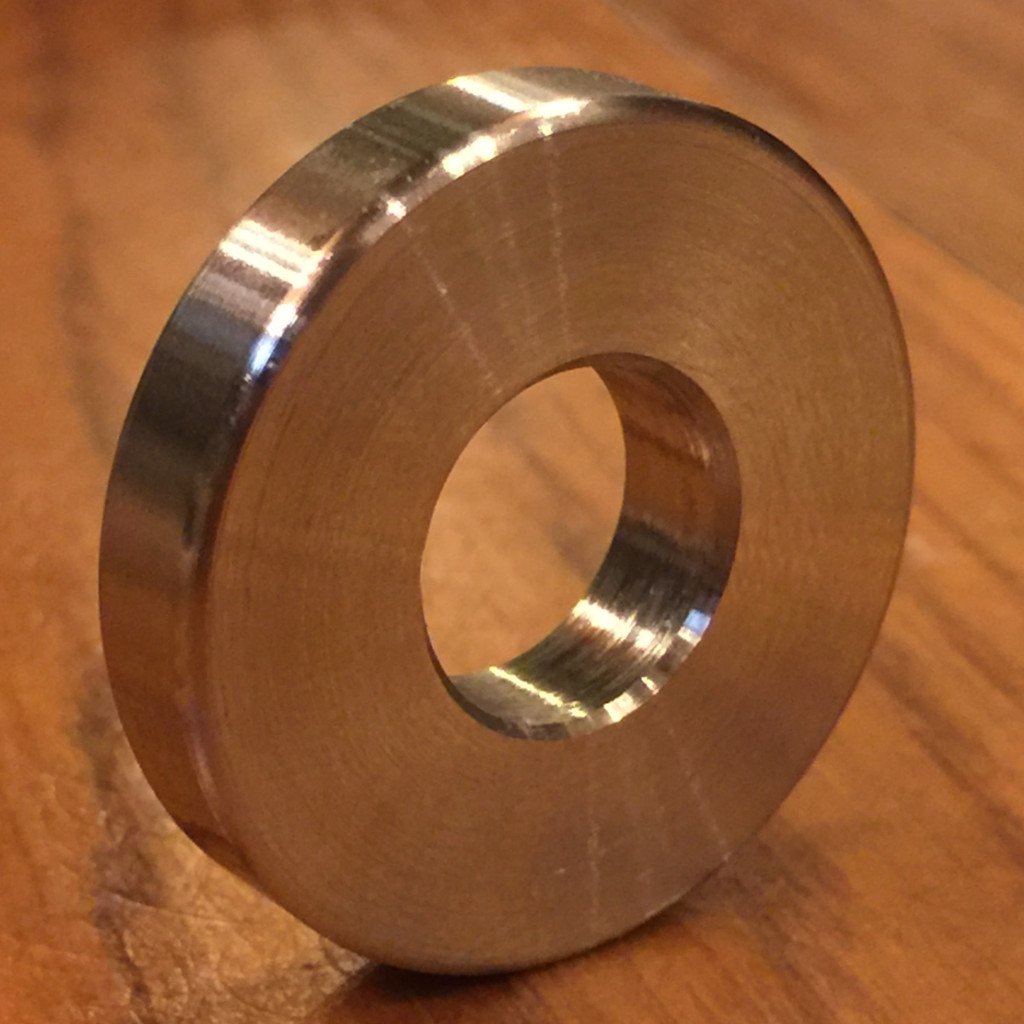

EXTSW 9/16” ID x ( 1 1/4” /1.240") OD x 1/4" Thick 316 Stainless Washer

EXTSW 9/16” ID x 1 1/4” OD x 1/4" Thick 316 Stainless Washer

Actual size .574" ID x 1.240" OD x .250" Thick

(+/-.003" on all dimensions)

 .030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

It is a beautiful fit for your 9/16” Stainless bolts

Just contact me if you need a custom size washer.

(Not 18/8, Not 303, Not 304)

316 Stainless Alloy is weldable and has the best corrosion resistance


Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.
316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
